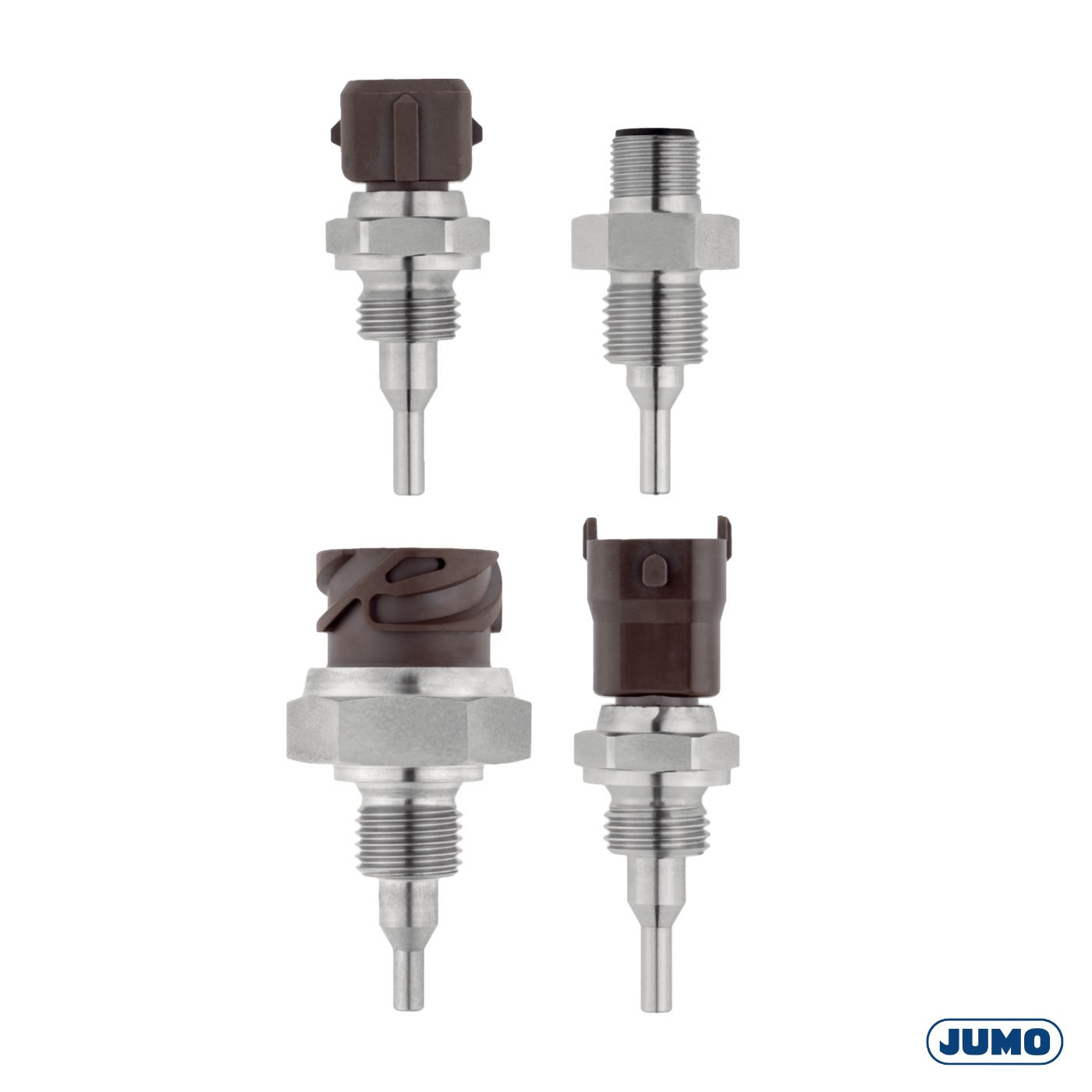

JUMO VIBROtemp screw-in resistance temperature sensor

Measurement applications

• Commercial vehicles
• Shipbuilding
• Construction and agricultural machinery
• Motors
• Compressors
• Railway technology

Short product information

• For temperatures from -50 to +270 °C (Temporarily to 300 °C)
• Vibration-resistant construction
• Various plug connectors; locked to ensure contact
• Protection type up to IP67/IP69 according to DIN EN 60529 (IP69K according to DIN 40050)

Short description
The vibration-resistant screw-in RTD temperature sensor with plug connector from the VIBROtemp series enables reliable temperature measurements in commercial vehicles, construction machinery, agricultural machinery, motors, compressors and in railway technology.
The vibration-resistant construction achieves excellent long-term stability even in tough operating conditions.
Different connections are available to suit the specific application area. The RTD VIBROtemp has protection type IP67/IP69(K) according to EN 60529/DIN 40050 when connected.
The probe is narrowing to 4 mm, which enables short response times.
The measuring insert is a Pt100 temperature sensor according to DINEN60751:2009/ IEC 60751:2008, class B in 2-wire circuit as standard. Versions with Pt500 or Pt1000 as well as PTC or NTC temperature sensors are also possible.
