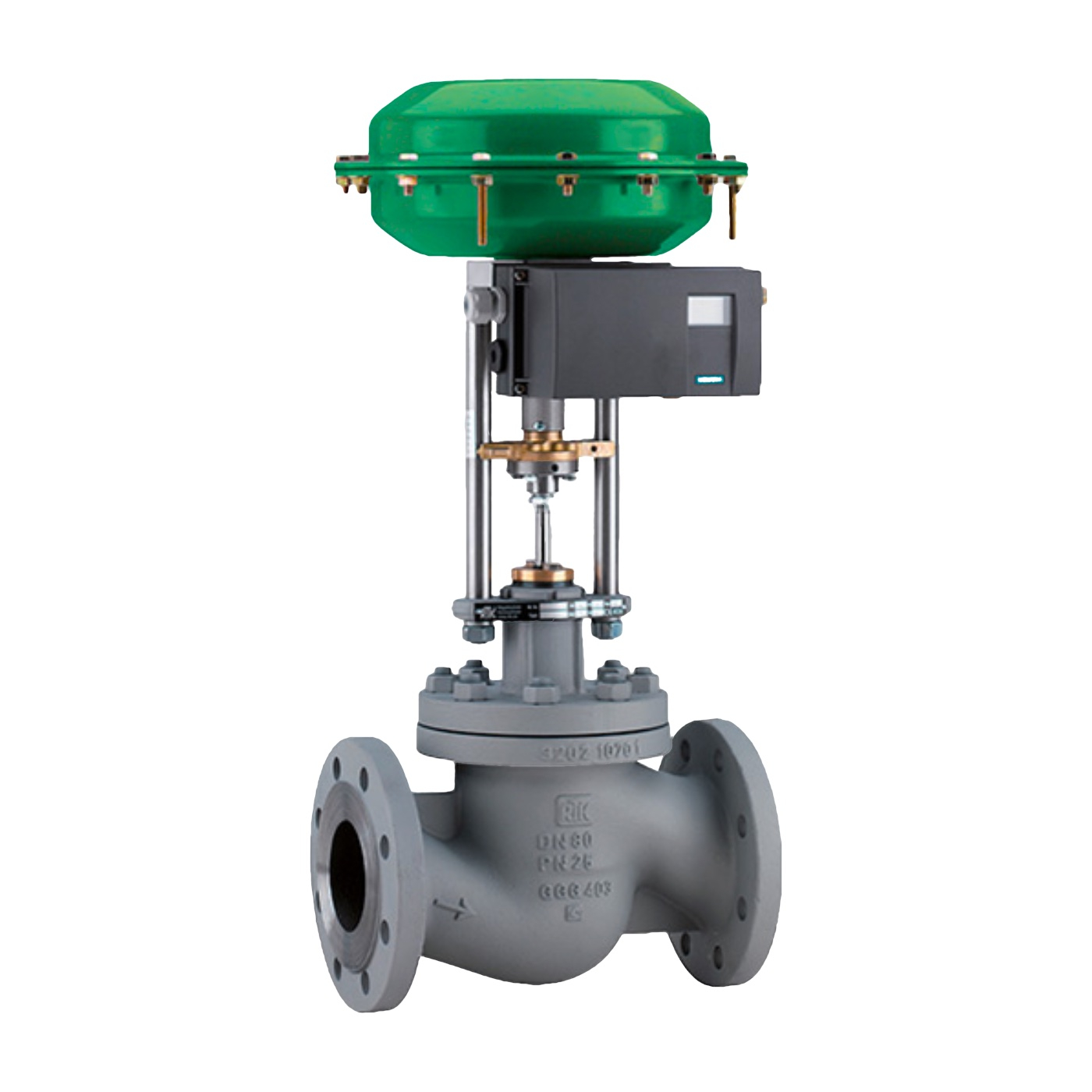

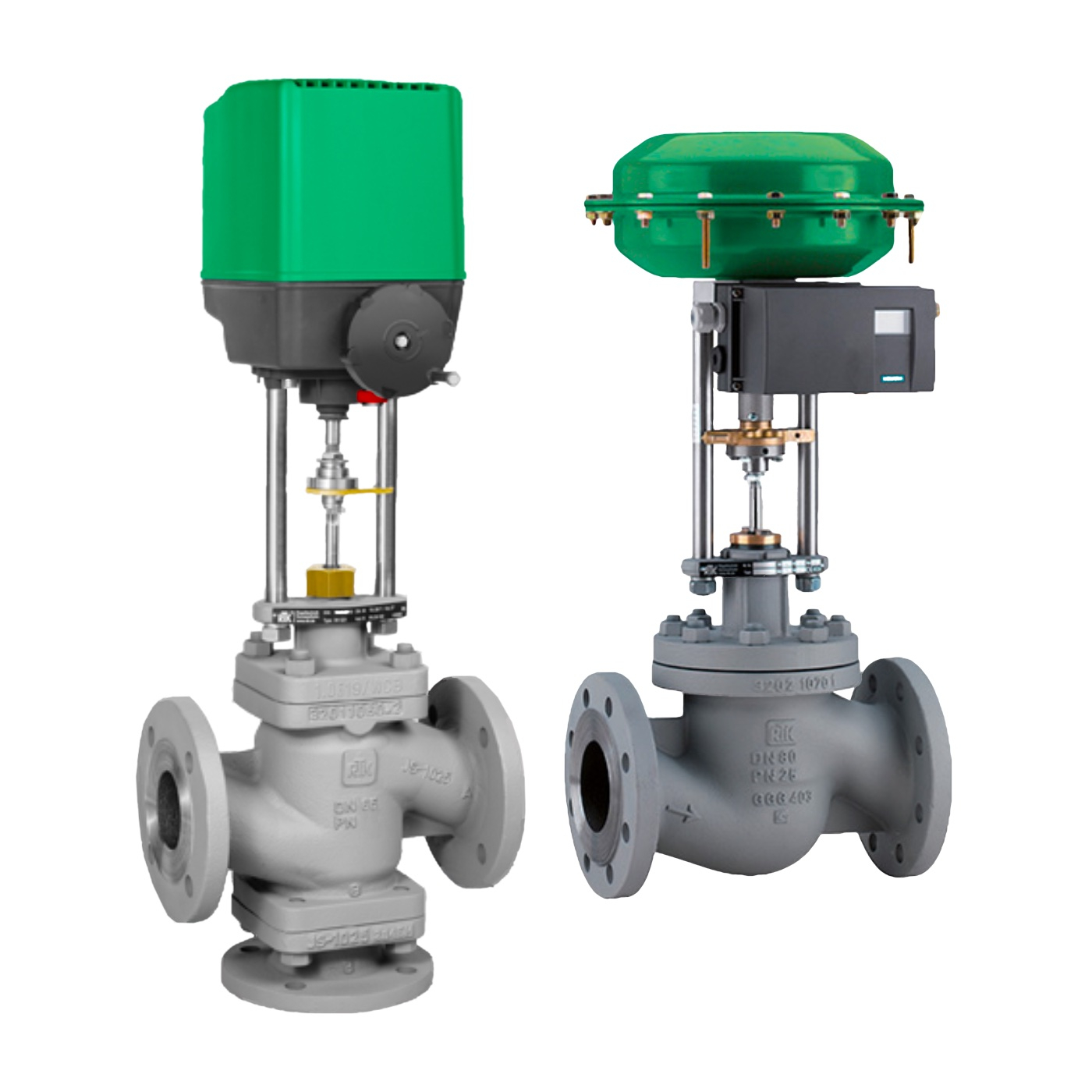

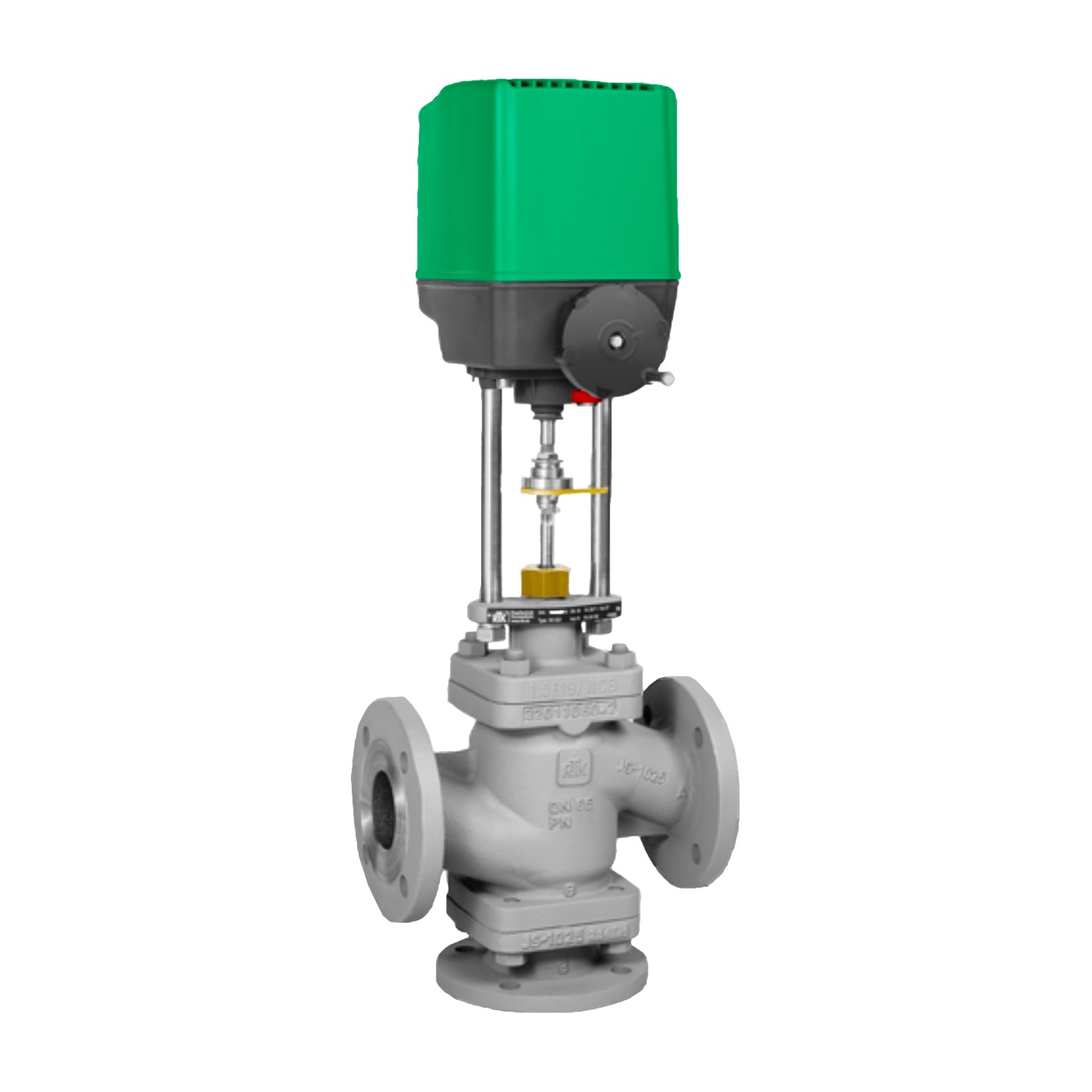

RTK MV5300 / PV6300 actuated two and three way valves

Actuated two- and three-way control valves for steam, liquids and gases. For throttling, mixing and diverting.

Available as a two-way or three-way valve
Optimal control through adapted cone assemblies
Additional accessories such as REpos Valve positioner, REtrans valve position feedback and heating resistor for humid environments.

Industry sectors

Aplications

Liquid temperature	to +530 °C
Certificates	DGRL (CE), DVGW, ATEX (For PV...), DNV-GL, RINA, ABS, TR TS (EAC), CRN, CCC
Material	Cast Iron, Ductile Iron, Cast Steel, Stainless Steel, Carbon steel, Other materials on request
Brand	RTK
Connection	Flange, Butt Weld ends, Threaded ends
Nominal diameter DIN	DN 15 to 150
Nominal diameter ANSI	NPS 1/2" to 6"
Nominal pressure DIN	PN 16 to 160
Nominal pressure ANSI	Class 150 to 900
Electric actuated MV serie	3 step control, I/O 0/4-20mA, 0/2-10V, Profibus DP, Profinet, Modbus, Additional limit switches, Hydraulic emergency closing unit, Anti-condensation heater, Integrated single loop PID controller supply voltage: 24, 115, 230, 400 VAC, 24 VDC
Leakage class	Depends on seat materials, Class III, IV, IV-S1, V, VI
Pneumatic actuated PV serie	Electro-pneumatic positioner, I/O 4-20mA, Profibus DP, 3/2 solenoid valve, Limit switches, Alarm module, Pressure gauges, Air filter regulator
Order code	To view the possible options, you can find the options with the relevant codes in the Data sheet documents. Or contact us if you have specific wishes that are not in the documents
